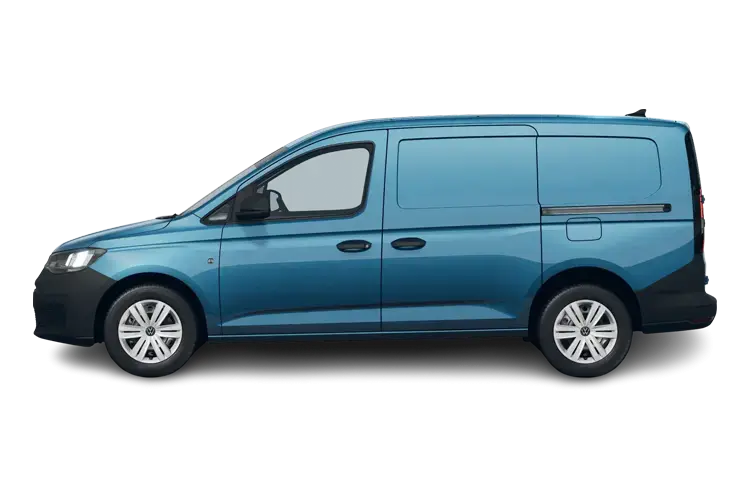

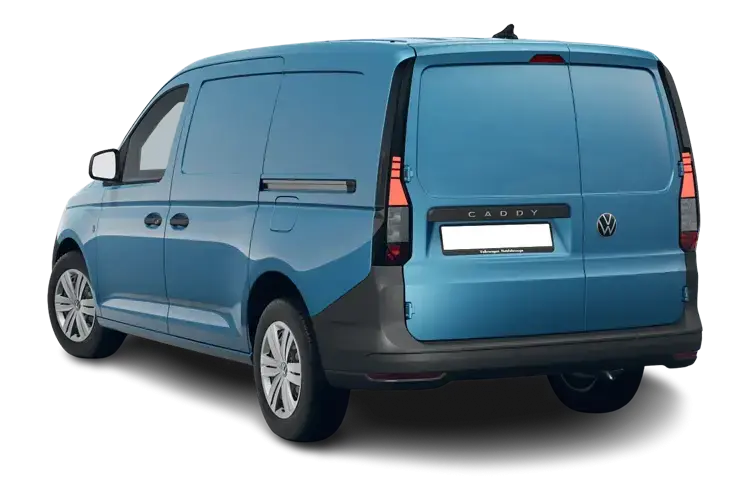

Volkswagen CADDY CARGO MAXI C20 PETROL

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  19.7
• Battery Charging Scenario 1 - Charge Time (Mins)
  514
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  2.3
• Battery Charging Scenario 2 - Charge Time (Mins)
  107
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Front
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  11
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  5
• Usable Battery Capacity
  19.7
• WLTP - EC (kWh/100km) - Comb
  19.2
• WLTP - EC (miles/kWh) - Comb
  3.2
• WLTP - EC AC Weighted (kWh/100km) - Comb
  19.2
• WLTP - EC AC Weighted (miles/kWh) - Comb
  3.2
• WLTP - Equivalent AER (km) - City
  145
• WLTP - Equivalent AER (km) - Comb
  115
• WLTP - Equivalent AER (miles) - City
  90.1
• WLTP - Equivalent AER (miles) - Comb
  71.5

Emissions - ICE

• CO
  Not Available
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  11
• WLTP - CO2 Weighted (g/km) - Comb - TEH
  12
• WLTP - CO2 Weighted (g/km) - Comb - TEL
  11

Engine and Drive Train

• Automatic Transmission
  Yes
• Catalytic Convertor
  Yes
• CC
  1498
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  DIRECT INJECTION TURBO INTERCOOLER
• Fuel Type
  PETROL
• Gears
  6 SPEED
• Manual Transmission
  No
• Number of Valves
  16

Fuel Consumption - PHEV

• WLTP - FC Ch Sus (l/100km) - Comb
  6.4
• WLTP - FC Ch Sus (l/100km) - Comb - TEH
  6.6
• WLTP - FC Ch Sus (l/100km) - Comb - TEL
  6.4
• WLTP - FC Ch Sus (l/100km) - Extra High
  7.3
• WLTP - FC Ch Sus (l/100km) - High
  5.6
• WLTP - FC Ch Sus (l/100km) - Low
  7.2
• WLTP - FC Ch Sus (l/100km) - Medium
  5.5
• WLTP - FC Ch Sus (mpg) - Comb
  44.1
• WLTP - FC Ch Sus (mpg) - Comb - TEH
  42.8
• WLTP - FC Ch Sus (mpg) - Comb - TEL
  44.1
• WLTP - FC Ch Sus (mpg) - Extra High
  38.7
• WLTP - FC Ch Sus (mpg) - High
  50.4
• WLTP - FC Ch Sus (mpg) - Low
  39.2
• WLTP - FC Ch Sus (mpg) - Medium
  51.4
• WLTP - FC Weighted (l/100km) - Comb
  0.5
• WLTP - FC Weighted (l/100km) - Comb - TEH
  0.5
• WLTP - FC Weighted (l/100km) - Comb - TEL
  0.5
• WLTP - FC Weighted (mpg) - Comb
  565
• WLTP - FC Weighted (mpg) - Comb - TEH
  565
• WLTP - FC Weighted (mpg) - Comb - TEL
  565

General

• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  1.5
• Badge Power
  150
• Based On ID
  Not Available
• Battery AH
  56
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  DISCS
• Front Suspension
  MCPHERSON STRUTS
• Generation Mark
  4
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• Rear Brakes
  DISCS
• Rear Suspension
  LEAF SPRINGS
• Relative Height
  H1
• Relative Length
  L1
• Running Cost League Headings
  SMALL
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  18600
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  3
• Steering
  PAS
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• BHP
  150
• Engine Power KW
  110
• Engine Torque LBS.FT
  184
• Engine Torque MKG
  25.5
• Engine Torque NM
  250
• Top Speed
  112

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  205/60 R16
• Tyre Size Rear
  205/60 R16
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Height
  1860
• Length
  4853
• Load Height
  1275
• Load Length
  2150
• Load Space Width Between Wheel Arches
  1230
• Load Width
  1614
• Wheelbase
  2970
• Width (excluding mirrors)
  1855
• Width (including mirrors)
  2100

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  50
• Gross Train Weight
  3900
• Gross Vehicle Weight
  2500
• Load Space Volume
  3.7
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Towing Weight - Braked
  1400
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1750
• No. of Seats
  2
• Payload
  750
• Plated 2nd Axle
  1430
• Plated Front Axle
  1230
