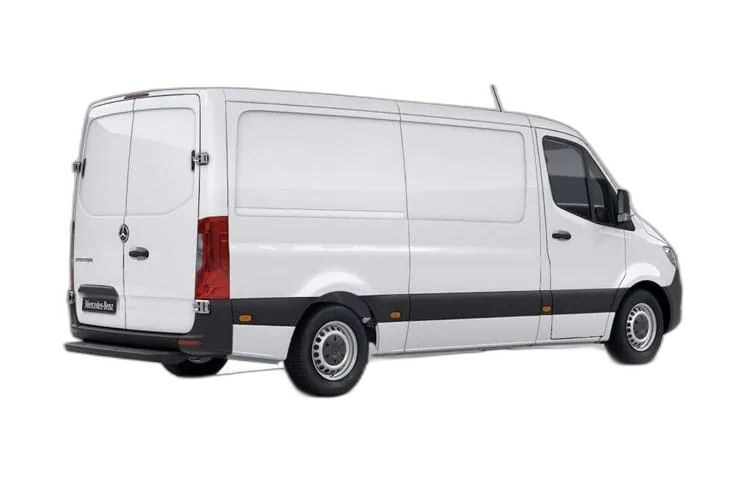

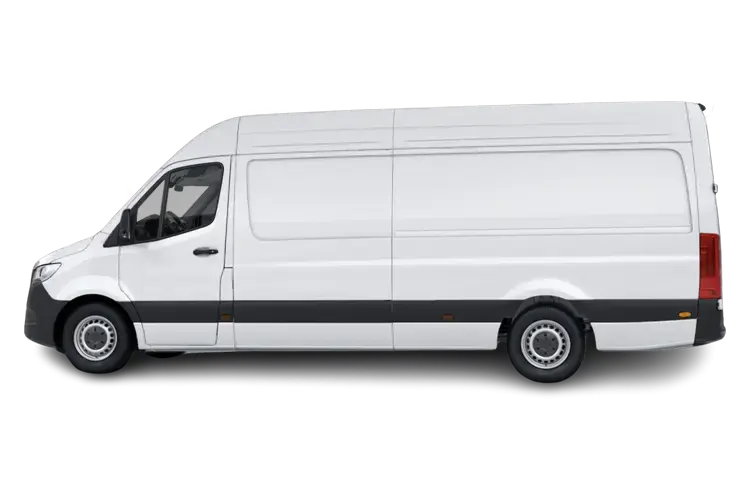

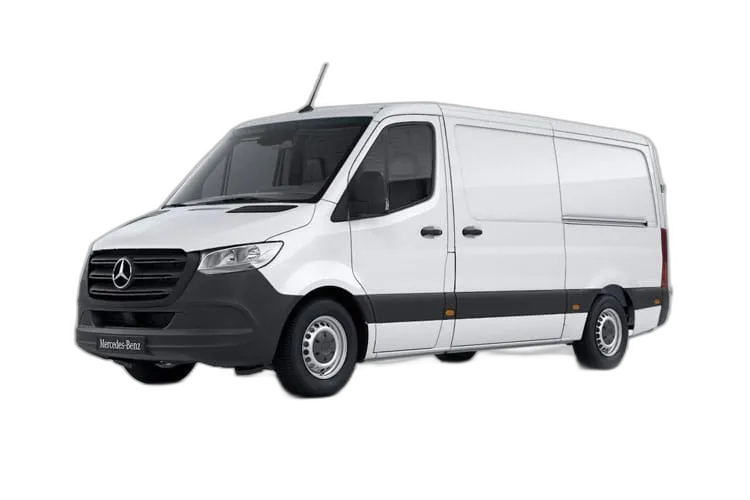

MERCEDES-BENZ SPRINTER 315CDI L2 DIESEL RWD

Emissions - ICE

• CO
  Not Available
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  240
• WLTP - CO2 (g/km) - Extra High
  273
• WLTP - CO2 (g/km) - High
  205
• WLTP - CO2 (g/km) - Low
  274
• WLTP - CO2 (g/km) - Medium
  212

Engine and Drive Train

• Automatic Transmission
  No
• Catalytic Convertor
  Yes
• CC
  1950
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Codes
  Not Available
• Engine Layout
  NORTH SOUTH
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  6 SPEED
• Manual Transmission
  Yes
• Number of Valves
  16
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  No
• WLTP - FC (l/100km) - Comb
  9.1
• WLTP - FC (l/100km) - Extra High
  10.4
• WLTP - FC (l/100km) - High
  7.8
• WLTP - FC (l/100km) - Low
  10.4
• WLTP - FC (l/100km) - Medium
  8.1
• WLTP - MPG - Comb
  31
• WLTP - MPG - Extra High
  27.1
• WLTP - MPG - High
  36.2
• WLTP - MPG - Low
  27.1
• WLTP - MPG - Medium
  34.8

General

• Alternator Amps
  180
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.0
• Badge Power
  150
• Based On ID
  Not Available
• Battery AH
  92
• Battery Volts
  12
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  VENTILATED DISCS
• Front Suspension
  LEAF SPRINGS
• Generation Mark
  3
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR WHEELS
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  Silver
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  52
• Rear Brakes
  DISCS
• Rear Suspension
  PARABOLIC SPRINGS
• Relative Height
  H2
• Relative Length
  L2
• Running Cost League Headings
  LARGE
• Special Edition
  No
• Special Order
  No
• Steering
  PAS RACK AND PINION
• This vehicle is classed as a car for VED purposes
  No
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  No

Performance

• 0 to 62
  Not Available
• BHP
  150
• Engine Power KW
  110
• Engine Power RPM
  3800
• Engine Torque LBS.FT
  251
• Engine Torque MKG
  34.7
• Engine Torque NM
  340
• Engine Torque RPM
  1500

Test Cycles

• Emissions Test Cycle
  WLTP

Tyres

• Alloys?
  No
• Automatic Clutch
  No
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  235/65 R16
• Tyre Size Rear
  235/65 R16
• Tyre Size Spare
  FULL SIZE
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Front Overhang
  1021
• Height
  2620
• Height (including roof rails)
  Not Available
• Length
  5932
• Load Deck Height
  626
• Load Height
  1846
• Load Length
  3375
• Load Space Width Between Wheel Arches
  1350
• Load Width
  1787
• Lower Rear Door Width
  1350
• Rear Door Height
  1846
• Rear Overhang
  1246
• Side Load Door Height
  1818
• Side Load Door Width
  1260
• Turning Circle - Kerb to Kerb
  13.3
• Upper Rear Door Width
  1555
• Wheelbase
  3665
• Width (excluding mirrors)
  2020
• Width (including mirrors)
  2345

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  71
• Gross Train Weight
  5500
• Gross Vehicle Weight
  3500
• Load Space Volume
  10.5
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  300
• Minimum Kerbweight
  2235
• No. of Seats
  3
• Payload
  1265
