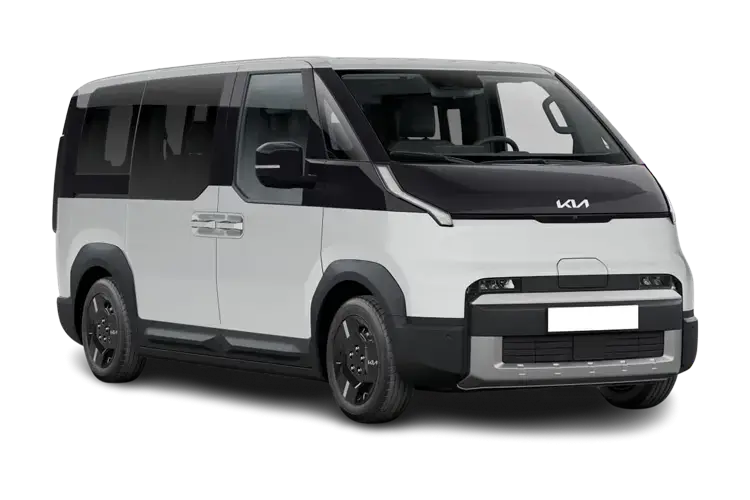

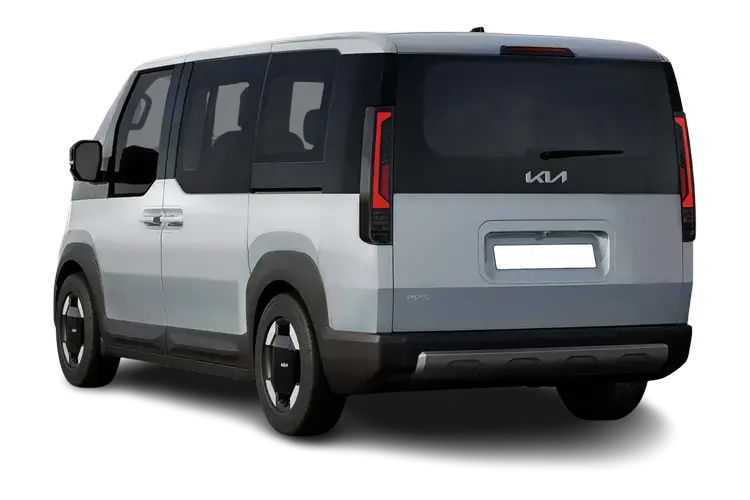

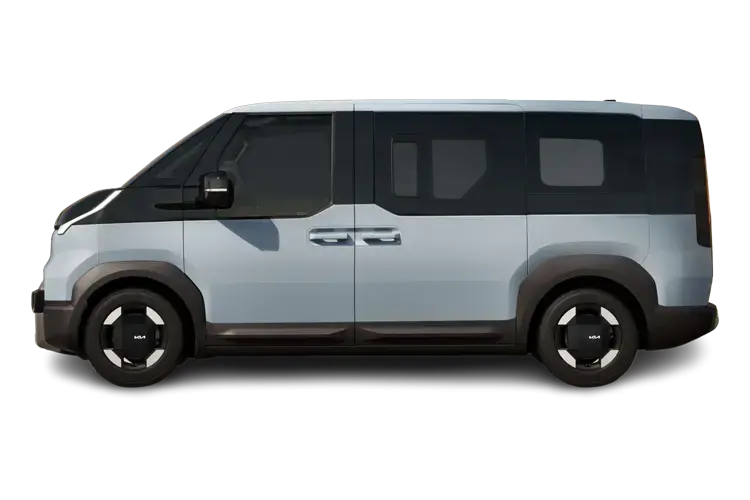

KIA PV5 ELECTRIC

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  71.2
• Battery Charging Scenario 1 - Charge Time (Mins)
  600
• Battery Charging Scenario 1 - Percentage Change
  10-100
• Battery Charging Scenario 1 - Power Supply - kW
  7
• Battery Charging Scenario 2 - Charge Time (Mins)
  390
• Battery Charging Scenario 2 - Percentage Change
  10-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  30
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  150
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Front
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  150
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  67

Emissions - ICE

• CO
  Not Available
• CO2
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  65
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cooling System
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Engine Codes
  Not Available
• Engine Layout
  Not Available
• Engine Make
  Not Available
• Fuel Delivery
  Not Available
• Fuel Type
  ELECTRIC
• Gears
  1 SPEED
• Manual Transmission
  No
• Number of Valves
  Not Available
• Stroke
  Not Available
• Valve gear
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
• Badge Power
  160
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  Not Available
• Front Suspension
  DOUBLE WISHBONE
• Generation Mark
  1
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  5 Star
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Suspension
  TORSION BEAM AXLE
• Relative Height
  H1
• Relative Length
  L2
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  20000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  7
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  N1

Performance

• 0 to 62 mph (secs)
  12.4
• BHP
  160
• Engine Power KW
  120
• Engine Torque LBS.FT
  184
• Engine Torque MKG
  25.5
• Engine Torque NM
  250
• Top Speed
  84

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  Not Available

Tyres

• Alloys?
  No
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  215/65 R16
• Tyre Size Rear
  215/65 R16
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Height
  1870
• Length
  4825
• Load Length
  2210
• Load Width
  1870
• Turning Circle - Kerb to Kerb
  11
• Wheelbase
  2995
• Width (excluding mirrors)
  2310

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2650
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  100
• Minimum Kerbweight
  2014
• No. of Seats
  2
• Payload
  636
