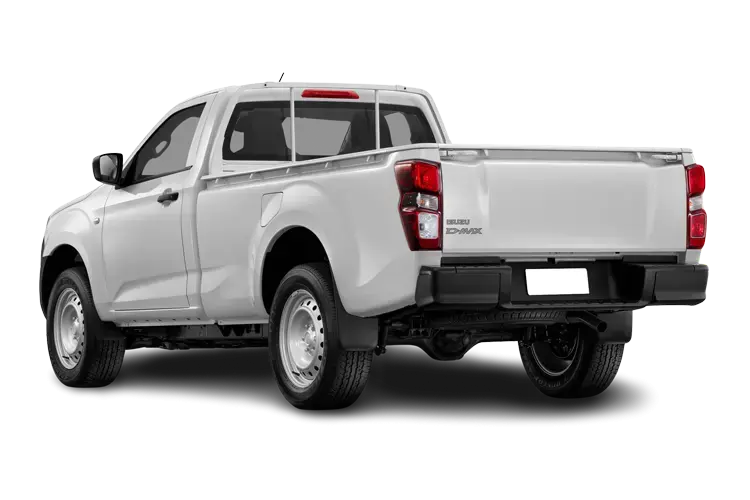

ISUZU D-MAX ELECTRIC

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  66.9
• Battery Charging Scenario 1 - Charge Time (Mins)
  600
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  7
• Battery Charging Scenario 2 - Charge Time (Mins)
  360
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  60
• Battery Charging Scenario 3 - Percentage Change
  20-80
• Battery Charging Scenario 3 - Power Supply - kW
  50
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  50
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  66.9
• WLTP - EC (kWh/100km) - Comb
  25.5
• WLTP - EC (miles/kWh) - Comb
  2.4
• WLTP - Pure Electric Range (km) - City
  361
• WLTP - Pure Electric Range (km) - Comb
  263
• WLTP - Pure Electric Range (miles) - City
  224
• WLTP - Pure Electric Range (miles) - Comb
  163

Emissions - ICE

• CO
  Not Available
• CO2
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cooling System
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Engine Codes
  Not Available
• Engine Layout
  Not Available
• Engine Make
  Not Available
• Fuel Delivery
  Not Available
• Fuel Type
  Not Available
• Gears
  1 SPEED
• Manual Transmission
  No
• Number of Valves
  Not Available
• Stroke
  Not Available
• Valve gear
  Not Available

Fuel Consumption - ICE

• EC
  Not Available
• EC Combined
  Not Available
• EC Extra Urban
  Not Available
• EC Urban
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Alternator Amps
  Not Available
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  0.0
• Badge Power
  190
• Based On ID
  Not Available
• Battery AH
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  Not Available
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  Not Available
• Front Brakes
  VENTILATED DISCS
• Front Suspension
  TORSION BAR
• Generation Mark
  3
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR WHEELS
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• NCAP Adult Occupant Protection %
  86
• NCAP Child Occupant Protection %
  86
• NCAP Overall Rating - Effective February 09
  5
• NCAP Overall Rating - LCV
  Not Available
• NCAP Pedestrian Protection %
  69
• NCAP Safety Assist %
  83
• Relative Height
  H1
• Relative Length
  L1
• Running Cost League Headings
  MEDIUM
• Special Edition
  No
• Special Order
  No
• This vehicle is classed as a car for VED purposes
  No
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• 0 to 62 mph (secs)
  10.1
• BHP
  190
• Engine Power KW
  140
• Engine Torque LBS.FT
  240
• Engine Torque MKG
  33.1
• Engine Torque NM
  325
• Top Speed
  84

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  Not Available

Tyres

• Alloys?
  Yes
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Size Front
  265/60R18
• Tyre Size Rear
  265/60R18
• Tyre Size Spare
  FULL SIZE
• Wheel Style
  Not Available
• Wheel Type
  18" ALLOY

Vehicle Dimensions

• Front Overhang
  905
• Height
  1790
• Length
  5280
• Load Height
  Not Available
• Load Length
  1940
• Lower Rear Door Width
  Not Available
• Rear Door Height
  Not Available
• Rear Overhang
  1250
• Side Load Door Height
  Not Available
• Side Load Door Width
  Not Available
• Upper Rear Door Width
  Not Available
• Wheelbase
  3125
• Width (excluding mirrors)
  1870
• Width (including mirrors)
  Not Available

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  Not Available
• Gross Train Weight
  6000
• Gross Vehicle Weight
  3360
• Load Space Volume
  Not Available
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  Not Available
• Max. Towing Weight - Braked
  3500
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2300
• No. of Seats
  5
• Payload
  1060
• Plated 2nd Axle
  1910
• Plated Front Axle
  1450
