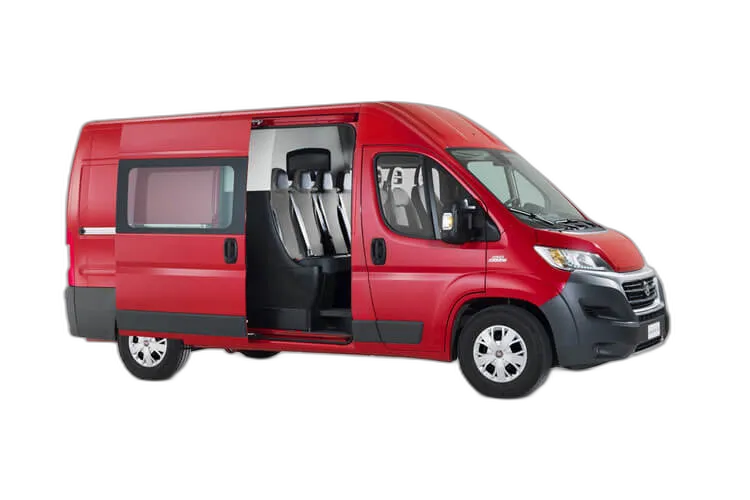

FIAT DUCATO 35 MAXI L4 DIESEL

Emissions - ICE

• HC
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb - TEH
  348
• WLTP - CO2 (g/km) - Comb - TEL
  201

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  83.8
• Catalytic Convertor
  Yes
• CC
  2184
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  8 SPEED
• Manual Transmission
  No
• Number of Valves
  16
• Stroke
  99
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  No
• WLTP - FC (l/100km) - Comb - TEH
  13.2
• WLTP - FC (l/100km) - Comb - TEL
  7.6
• WLTP - MPG - Comb - TEH
  21.3
• WLTP - MPG - Comb - TEL
  36.9

General

• Alternative Fuel Qualifying
  No
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.2
• Badge Power
  180
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  VENTILATED DISCS
• Front Suspension
  MCPHERSON STRUTS
• Generation Mark
  3
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  Gold
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  78
• Rear Brakes
  DISCS
• Rear Suspension
  LONGITUDINAL LEAF SPRINGS
• Relative Height
  H2
• Relative Length
  L4
• Running Cost League Headings
  LARGE
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  32000
• Special Edition
  No
• Special Order
  No
• Steering
  PAS RACK AND PINION
• This vehicle is classed as a car for VED purposes
  No
• Timing Belt Interval Frequency - Months
  72
• Timing Belt Interval Mileage
  90000
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• BHP
  180
• Engine Power KW
  132
• Engine Power RPM
  3500
• Engine Torque LBS.FT
  332
• Engine Torque MKG
  45.9
• Engine Torque NM
  450
• Engine Torque RPM
  1500

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  215/70 R15
• Tyre Size Rear
  215/70 R15
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  15" STEEL

Vehicle Dimensions

• Front Overhang
  948
• Height
  2252
• Length
  6363
• Load Height
  1932
• Load Length
  4070
• Load Space Width Between Wheel Arches
  1422
• Load Width
  1870
• Lower Rear Door Width
  1562
• Rear Door Height
  1790
• Rear Overhang
  1380
• Side Load Door Height
  1755
• Side Load Door Width
  1250
• Wheelbase
  4035
• Width (excluding mirrors)
  2050

Weight and Capacities

• Fuel Tank Capacity (Litres)
  90
• Gross Train Weight
  6500
• Gross Vehicle Weight
  3500
• Load Space Volume
  15
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Towing Weight - Braked
  3000
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2180
• No. of Seats
  3
• Payload
  1320
• Plated 2nd Axle
  2400
• Plated Front Axle
  2100
