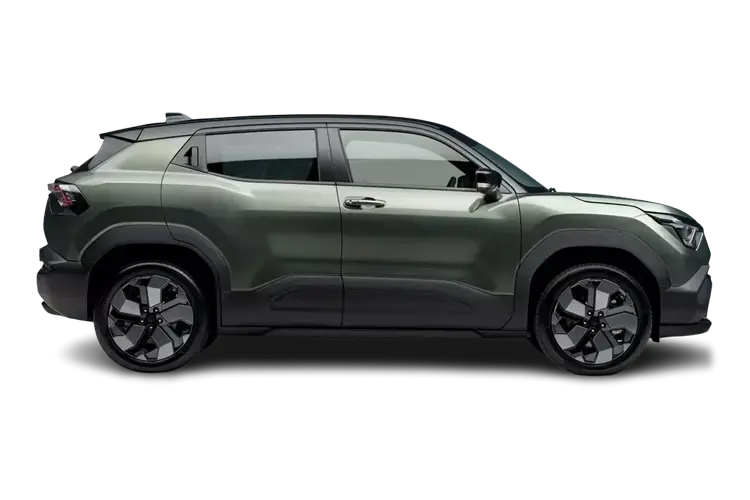

SUZUKI e-VITARA ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  61
• Battery Charging Scenario 1 - Charge Time (Mins)
  540
• Battery Charging Scenario 1 - Percentage Change
  10-100
• Battery Charging Scenario 1 - Power Supply - kW
  7
• Battery Charging Scenario 2 - Charge Time (Mins)
  330
• Battery Charging Scenario 2 - Percentage Change
  10-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  45
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  150
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Front
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  150
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  Not Available
• WLTP - EC (kWh/100km) - City
  12.5
• WLTP - EC (kWh/100km) - Comb
  16.6
• WLTP - EC (miles/kWh) - City
  5
• WLTP - EC (miles/kWh) - Comb
  3.7
• WLTP - Pure Electric Range (km) - City
  526
• WLTP - Pure Electric Range (km) - Comb
  395
• WLTP - Pure Electric Range (miles) - City
  326
• WLTP - Pure Electric Range (miles) - Comb
  245

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  Not Available
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
• Badge Power
  184
• Based On ID
  Not Available
• Coin Description
  61kWh
• Coin Series
  Ultra ALLGRIP-e
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  28A
• NCAP Adult Occupant Protection %
  77
• NCAP Child Occupant Protection %
  85
• NCAP Overall Rating - Effective February 09
  4
• NCAP Pedestrian Protection %
  79
• NCAP Safety Assist %
  72
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.4
• Engine Power - BHP
  184
• Engine Power - KW
  135
• Engine Power - RPM
  Not Available
• Engine Torque - LBS.FT
  226
• Engine Torque - MKG
  31.3
• Engine Torque - NM
  307
• Engine Torque - RPM
  Not Available
• Top Speed
  93

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  225/50 R19
• Tyre Size Rear
  225/50 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height
  1635
• Height (including roof rails)
  1640
• Length
  4275
• Wheelbase
  2700
• Width
  1800
• Width (including mirrors)
  Not Available

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2360
• Luggage Capacity (Seats Down)
  562
• Luggage Capacity (Seats Up)
  306
• Max. Loading Weight
  461
• Max. Towing Weight - Braked
  750
• Minimum Kerbweight
  1899
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.4
