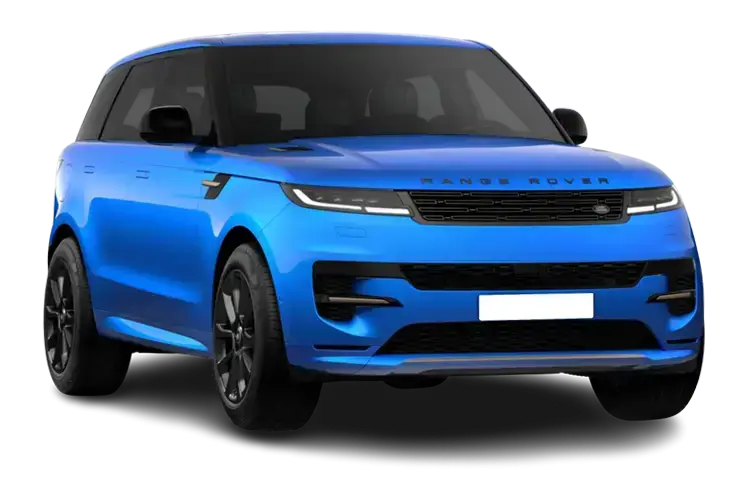

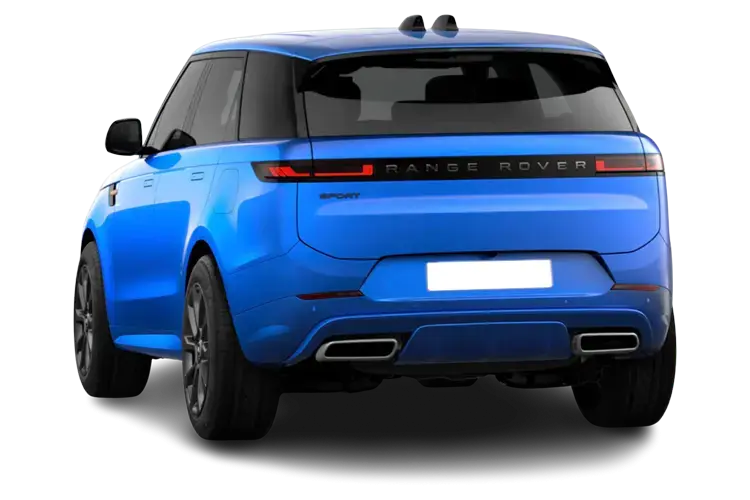

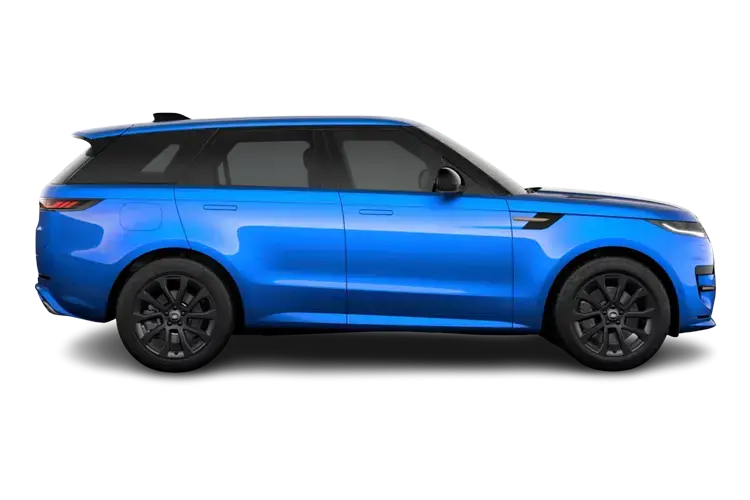

LAND ROVER RANGE ROVER SPORT ELECTRIC ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  72
• Battery Capacity in kWh
  128.6
• Battery Charging Scenario 1 - Charge Time (Mins)
  1140
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  7
• Battery Charging Scenario 2 - Charge Time (Mins)
  660
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  420
• Battery Charging Scenario 3 - Percentage Change
  0-100
• Battery Charging Scenario 3 - Power Supply - kW
  22
• Battery Charging Scenario 4 - Charge Time (Mins)
  22
• Battery Charging Scenario 4 - Percentage Change
  10-80
• Battery Charging Scenario 4 - Power Supply - kW
  350
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left and Right Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  350
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  118.5
• WLTP - EC (kWh/100km) - Comb
  22.2
• WLTP - EC (kWh/100km) - Comb - TEH
  23
• WLTP - EC (kWh/100km) - Comb - TEL
  22.2
• WLTP - EC (miles/kWh) - Comb
  2.8
• WLTP - EC (miles/kWh) - Comb - TEH
  2.7
• WLTP - EC (miles/kWh) - Comb - TEL
  2.8
• WLTP - Pure Electric Range (km) - Comb
  603
• WLTP - Pure Electric Range (km) - Comb - TEH
  590
• WLTP - Pure Electric Range (km) - Comb - TEL
  603
• WLTP - Pure Electric Range (miles) - Comb
  374.7
• WLTP - Pure Electric Range (miles) - Comb - TEH
  366.6
• WLTP - Pure Electric Range (miles) - Comb - TEL
  374.7

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  Not Available
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  0.0
• Badge Power
  550
• Based On ID
  Not Available
• Coin Description
  EV550
• Coin Series
  Dynamic SE
• Generation Mark
  3
• Insurance Group 1 - 50 Effective January 07
  50E
• Manufacturers Corrosion Perforation Guarantee - Years
  6
• Manufacturers Paintwork Guarantee - Years
  3
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  21000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  3
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 60 mph (secs)
  4.3
• Engine Power - BHP
  550
• Engine Power - KW
  405
• Engine Torque - LBS.FT
  627
• Engine Torque - MKG
  86.7
• Engine Torque - NM
  850
• Top Speed
  124

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  275/45 R21
• Tyre Size Rear
  275/45 R21
• Tyre Size Spare
  Not Available
• Wheel Style
  STYLE 5126
• Wheel Type
  21" ALLOY

Vehicle Dimensions

• Height
  1819
• Height (including roof rails)
  Not Available
• Length
  4946
• Wheelbase
  2997
• Width
  2003
• Width (including mirrors)
  2209

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  3480
• Max. Loading Weight
  785
• Max. Roof Load
  100
• Max. Towing Weight - Braked
  2500
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2695
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.95
